Rolling fire doors
Janus 500 Series Rolling Fire Doors, 500i Insulated Rolling Fire Doors and 550 Series Fire Rated Counter Shutters are UL-rated and close automatically through fusible links, smoke and heat detectors or a connection to the building alarm.
Talk to your Janus commercial sales rep: (866) 562-2580
Models
Choose the 500 for large openings, the 500i when the opening also needs insulation, and the 550 for counters and other compact fire-rated walls.

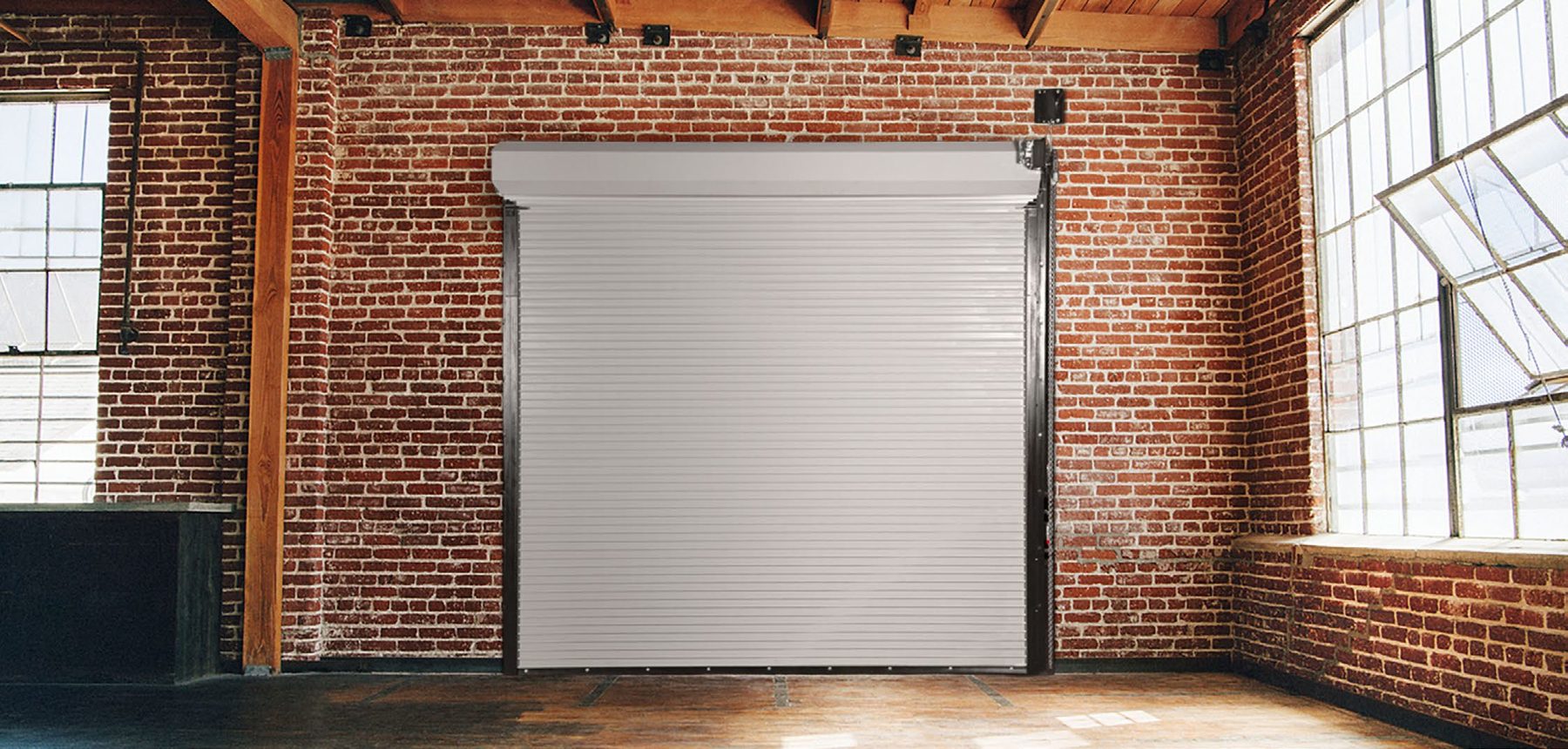

UL ratedUp to 30' wide or 24' high · 600 sq ft max
For openings that need a fire-rated door, with a space-saving design that installs to steel, concrete or masonry.

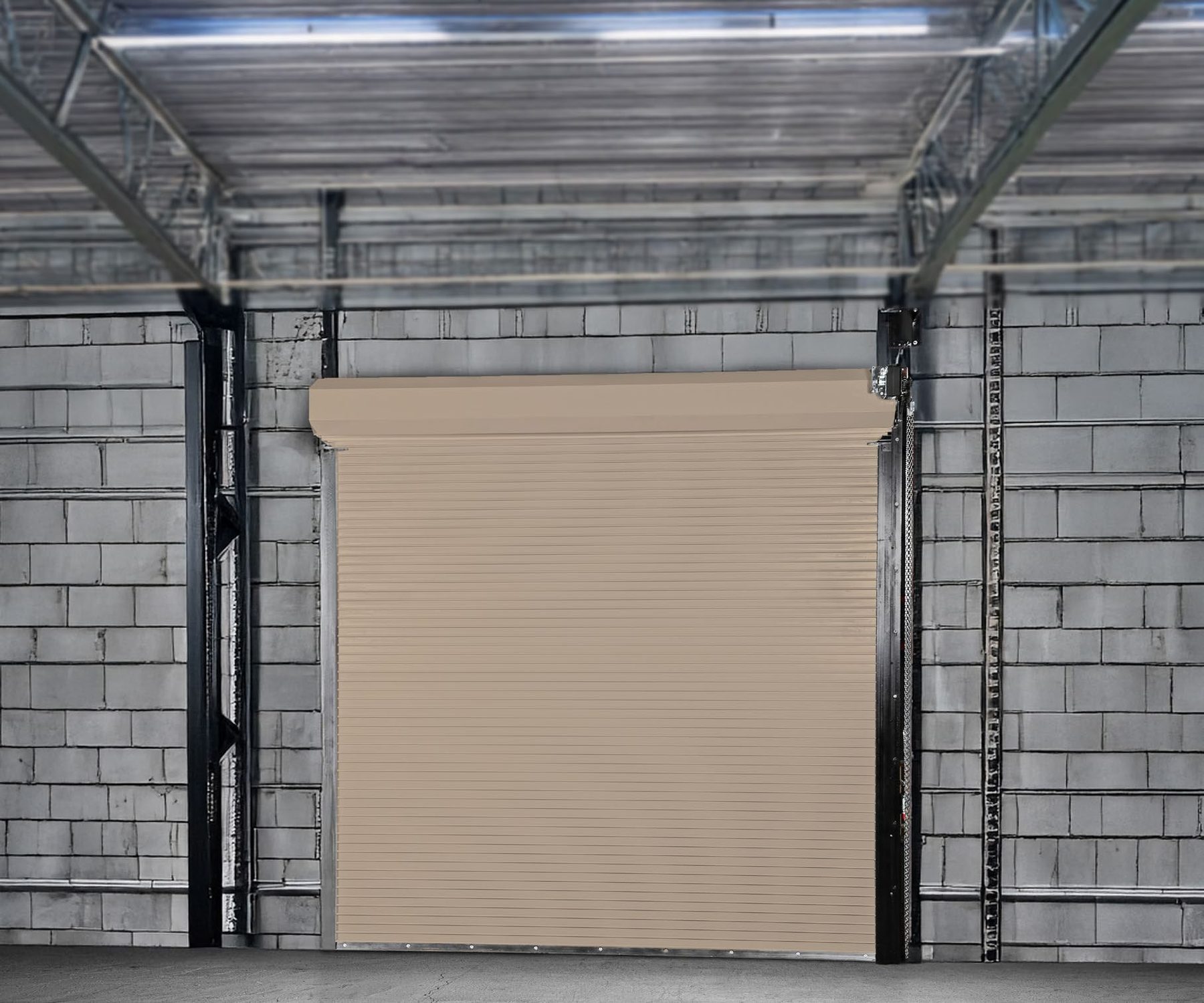

Insulated · UL ratedUp to 30' wide or 24' high
Fire protection plus insulation: 22, 20 or 18-gauge slats with a 24-gauge backer and mineral wool insulation.
UL ratedUp to 12' wide × 8' high
UL-rated fire protection in a compact, cost-effective shutter for pharmacies, cafeterias, concessions, ticket counters and hospital desks.
Inspection and compliance
A rolling fire door can sit open for years before it is needed. Annual inspection and drop testing are what keep it ready.
Follow NFPA 80 and your Authority Having Jurisdiction for inspection and testing requirements.
Applications
From the Janus Rolling Steel Application Guide.
Door Selector Tool
Answer eight quick questions about the building, the opening and how the door will be used. The Door Selector shows every Janus rolling steel, commercial sheet and mini door that fits, with specifications, door sheets and a quote link on every result.
Key content
eBookHow rolling fire doors work, and how to keep them inspected and compliant.
DownloadFormThe form to record annual drop testing.
Open
GuideMatch every series to 17 applications, from agriculture to stadiums.
Download
CatalogEvery series, spec table, windload rating and color option.
DownloadCommon questions
A fail-safe release device closes the door when a 165°F fusible link melts, a smoke or heat detector trips, or the building fire alarm sends a signal. The door descends at a controlled speed and seals the opening.
The 500 Series is UL rated for 45 minutes, 1-1/2 hours and 3 hours, and 4 hours in 18-gauge. The 500i is rated up to 3 hours, and the 550 counter shutter for 45 and 90 minutes.
At minimum, a trained and certified fire door assembly technician should inspect and drop test each door every year, and after every repair or approved modification. Follow NFPA 80 and your Authority Having Jurisdiction.
The 500i adds a 24-gauge backer and mineral wool insulation rated R-4.7, for openings that need both fire protection and thermal performance.
Tell us about the opening and a Janus commercial team member will help you find the right door, fast.
