SERIES 2000

Commercial Roll Up Door Model 2000 / 2000i

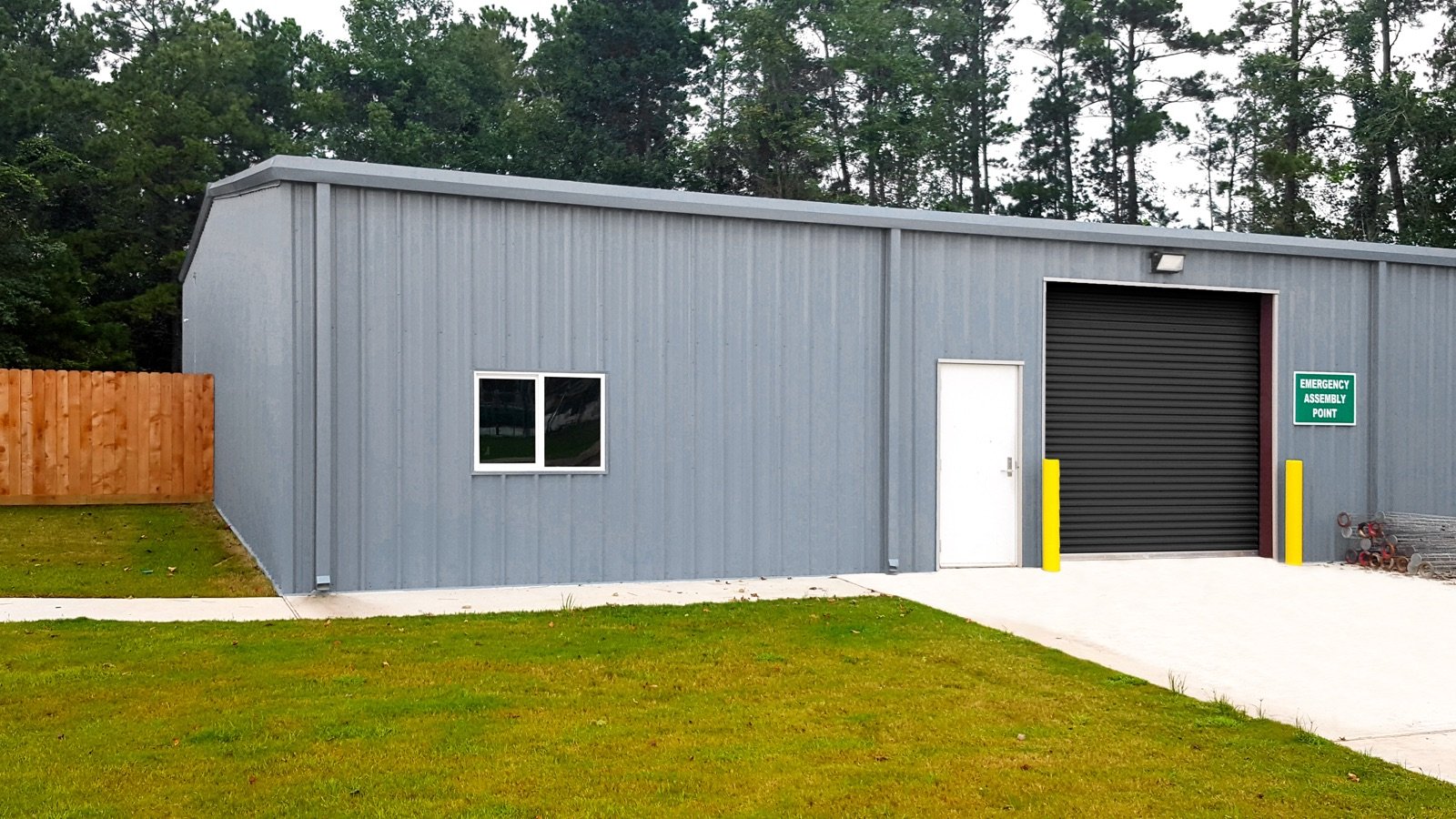

Row of black Janus Model 2000 commercial roll-up doors

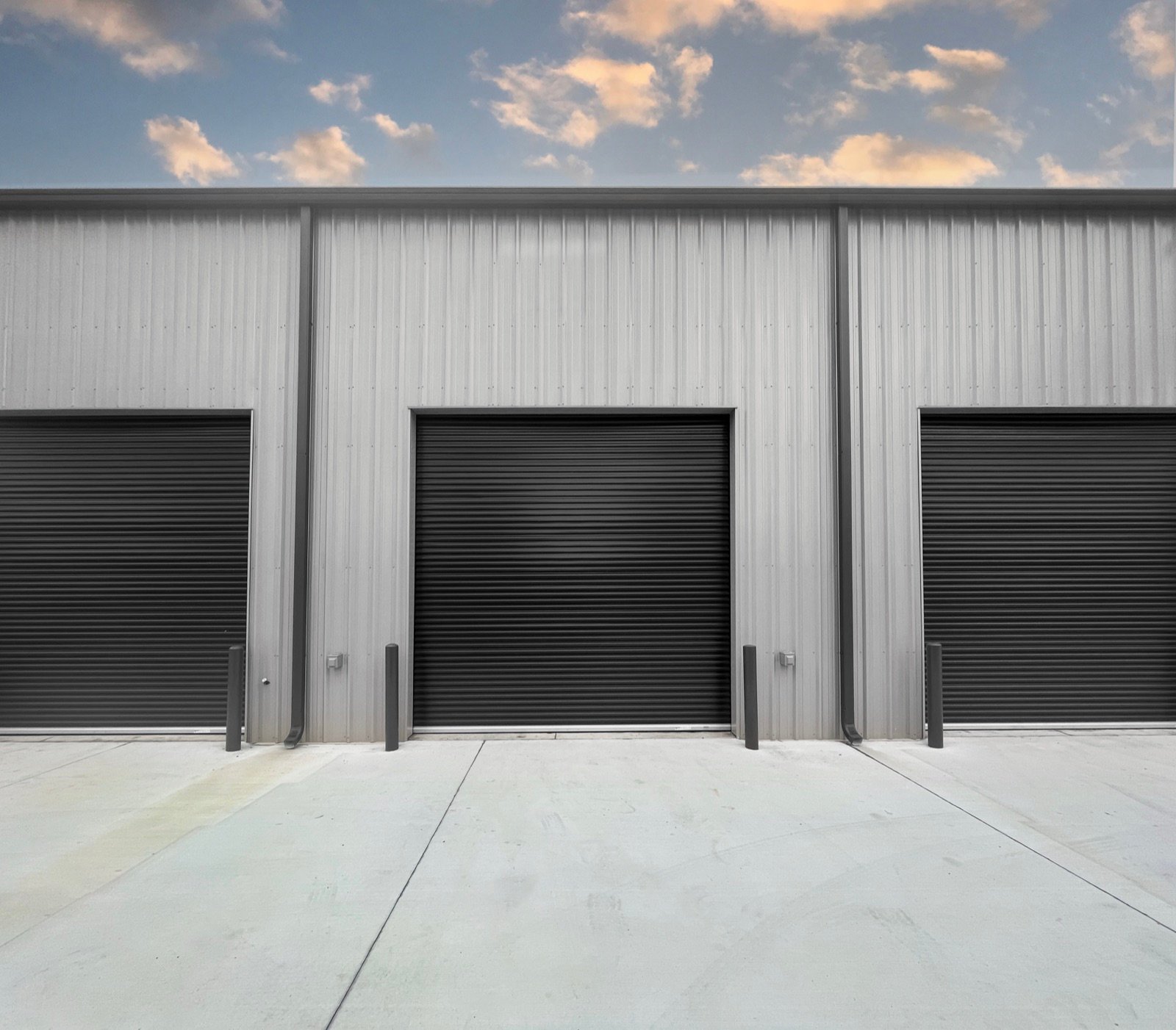

Black Janus Model 2000 roll-up door on a gray steel building

The 2000 Commercial Series from Janus International is a heavy-duty sheet door engineered for strength, durability and frequent use. Designed for smooth, dependable operation, it delivers versatility while remaining economical. Backed by a one-year limited warranty on workmanship and materials, the 2000 provides reliable performance and exceptional value for commercial applications.

STANDARD FEATURES

  • Pre-Lubricated Springs: During production, springs are factory lubricated and enclosed in a tube to protect them from the environmental elements.
  • Dead Axle & Barrel Assembly: An enclosed spiral barrel houses the dead axle assembly and offers durability and smoother operation as weight is distributed throughout the barrel.
  • 26-Gauge Corrugated Door Curtain: Manufactured from galvanized grade-80 steel and coated with super-durable polyester paint in more than 30 color options.
  • Insulated Version Available: Side and top draft stops included.

Download Brochure

PRODUCT HIGHLIGHTS

Model2000
Product TypeSteel commercial sheet door
ApplicationLight-Duty
Maximum Size
Width x Height
12' x 16'
Wind Load RatedNo
Impact RatedNo
Barrel12"
Guide / Guide Gauge2-1/4" / 16-ga
Factory Installed BracketsNo
Curtain26-ga corrugated, All 30+ colors
Vision PanelsOptional
InsulationOptional
Chain HoistReduced-drive standard over 10' wide or 10' high
Warranty1-year limited, workmanship and materials

SPECIFICATIONS

Curtain

  • 26-gauge galvanized corrugated steel
  • Grade 80 galvanized steel
  • Over 30 Color Options
  • Super Durable polyester paint coatings, which are corrosion resistant
  • Wash coat over primer interior side
  • 40-year film integrity warranty — up to 30-year chalk and fade
  • Flexible nylon wear strips

Bottom Bar

  • 24 gauge acrylic-coated galvalumed roll formed steel
  • 2” x 1 ½” galvanized angle
  • Bulb astragal (Durometer 75)
  • Stainless steel nuts and bolts

Axle/Torque Tube

  • 1-5/16” O.D. steel axle, 14-gauge
  • Oil tempered torsion springs conforming to ASTM A229
  • 16-gauge, 12” diameter galvanized drum
  • Low friction, grease-filled steel ball bearings staked in each drum
  • 26 gauge spiral torque tubing that houses axle assembly

Guides

  • 16 gauge galvanized
  • Bolt on head stop ¼” thick steel
  • 2 ¼” guide depth
  • Pre-punched for lock and attachment bolts
  • Vinyl guide wear strip
  • Universal jamb mount

Hardware

  • Bottom bar mounted 10 gauge slide locks – 2 per door
  • Bottom bar mounted 16 gauge step plate – 2 per door
  • 12 gauge door mounting brackets
  • 1-5/16” tension holding device

Visit our technical information page for more details on how the Model 2000 door is manufactured.

CONTROL ACCESSORIES AND OPTIONS

Options

  • Insulation Series 2000 I
  • Top draft stop
  • Side draft stop
  • Chain hoist 5.7:1 reduction
  • Electric operator
  • Vision panels (17”x 5”)
  • Hood
  • Steel mounting plates
  • Stainless steel mini latch
