SERIES 1100

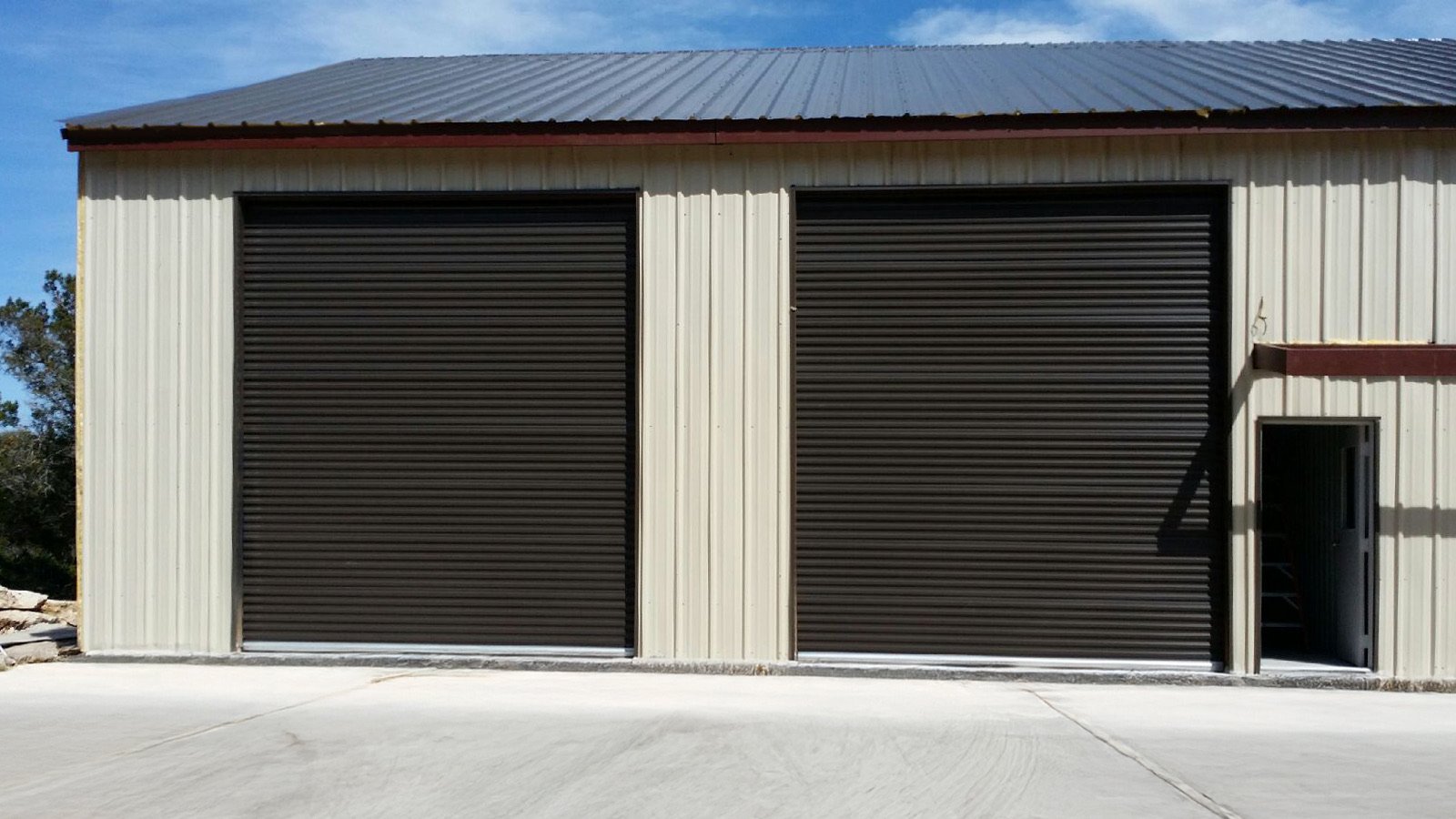

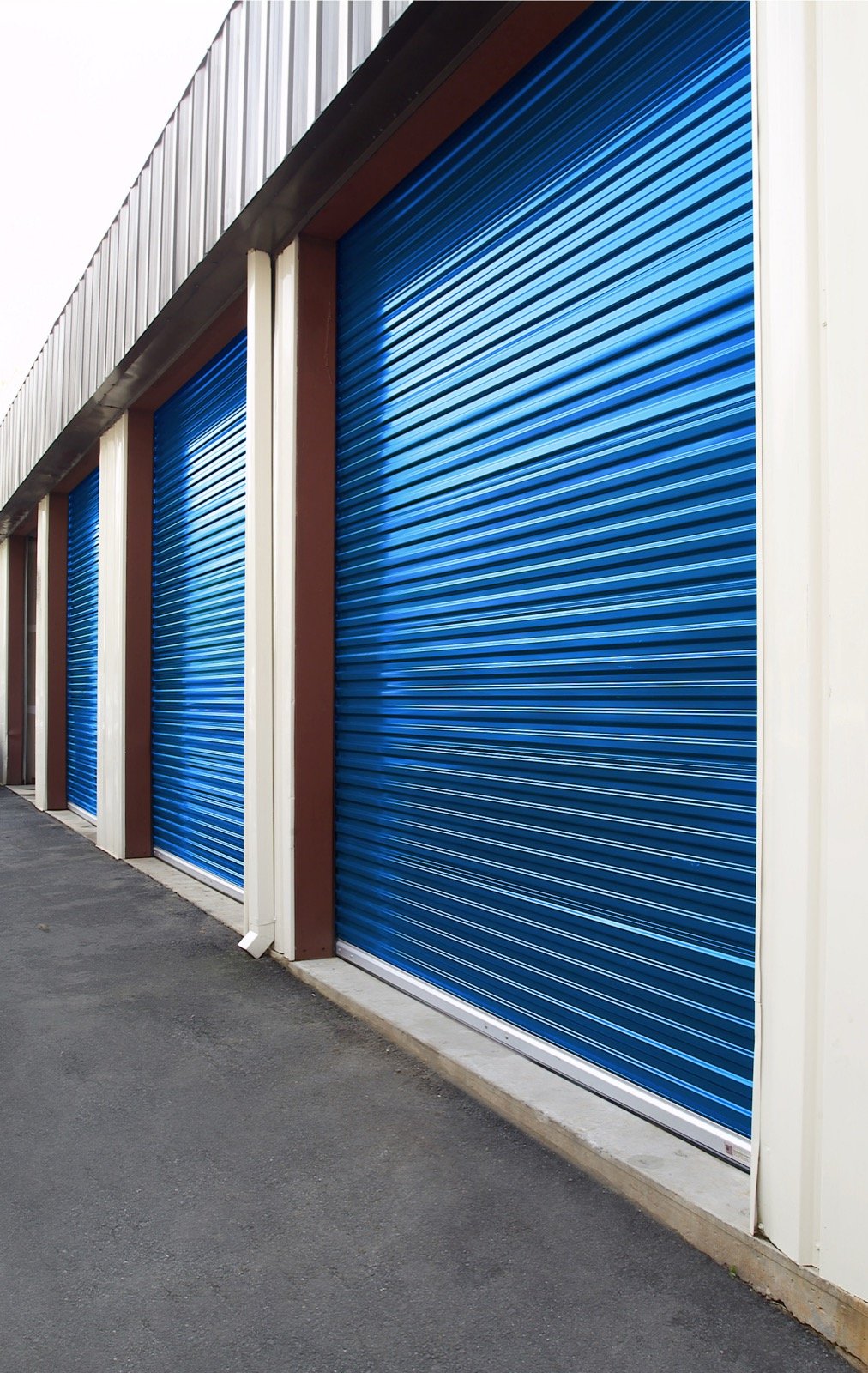

The 1100 Commercial Series from Janus International is a durable, economical solution for light-duty commercial applications. With pre-assembled brackets and a factory-installed tensioner, the 1100 Series roll-up door installs quickly and delivers long-lasting performance. Built to meet wind-load certification standards, this model is ideal for coastal environments and regions prone to extreme weather.

STANDARD FEATURES

• Pre-Lubricated Springs: During production, springs are factory lubricated and enclosed in a tube to protect them from the environmental elements.
• Dead Axle & Barrel Assembly: An enclosed spiral barrel houses the dead axle assembly and offers durability and smoother operation as weight is distributed throughout the barrel.
• Ratchet Tensioning Device: The tension wheel’s eight adjustable positions let you fine-tune both springs simultaneously, ensuring equal pull on each side for smooth, balanced door operation.
• 26-Gauge Corrugated Door Curtain: Manufactured from galvanized grade-80 steel and coated with super-durable polyester paint in more than 30 color options.
• Insulated Version Available: Side and top draft stops included.
• Metal Windlocks: 12-gauge provides strength and security. Windlocks do not come in contact with guides.

Download Brochure

PRODUCT HIGHLIGHTS

SPECIFICATIONS

Windload

• Rated +24.4 PSF and -27.0 PSF for opening widths through 8’8”
• Rated +19.4 PSF and -22.7 PSF for opening widths over 8’8” through 10’0”
• Designed in accordance with ASCE 7-02 and the Florida Building Code 2004 with 2006 Supplement and the International Building Code 2003

Curtain

• 26-gauge galvanized corrugated steel
• Grade 80 steel
• Over 30 Color Options
• Super Durable Polyester paint coatings, which are corrosion resistant
• Wash coat over primer interior side

Bottom Bar

• 24 gauge acrylic-coated galvalumed roll formed steel
• 2” x 1 ½” galvanized angle
• Bulb astragal (Durometer 75)
• Stainless steel bolts

Axle/Torque Tube

• 18-gauge, 9 ½” diameter galvanized drum
• Low friction, grease-filled steel ball bearings staked in each drum
• 26 gauge spiral torque tubing that houses axle assembly

Guides

• 16 gauge galvanized
• Vinyl guide wear strip
• Bolt on head stop ¼” thick steel
• 2 ¼” guide depth
• Pre-punched for lock
• Universal jamb mount

Hardware

• Bottom bar mounted 12 gauge slide locks – 2 per door
• Bottom bar mounted 16 gauge step plate – 2 per door
• 12 gauge door mounting brackets
• Ratchet tensioner device

Are you seeking a strong, wind load rated roll up door? Contact us or call us at (770) 562-2850 for more information on our Model 1100 series. View our brochure for even more details.
