SERIES 500i

Rolling Steel Series 500i Insulated Rolling Fire Door

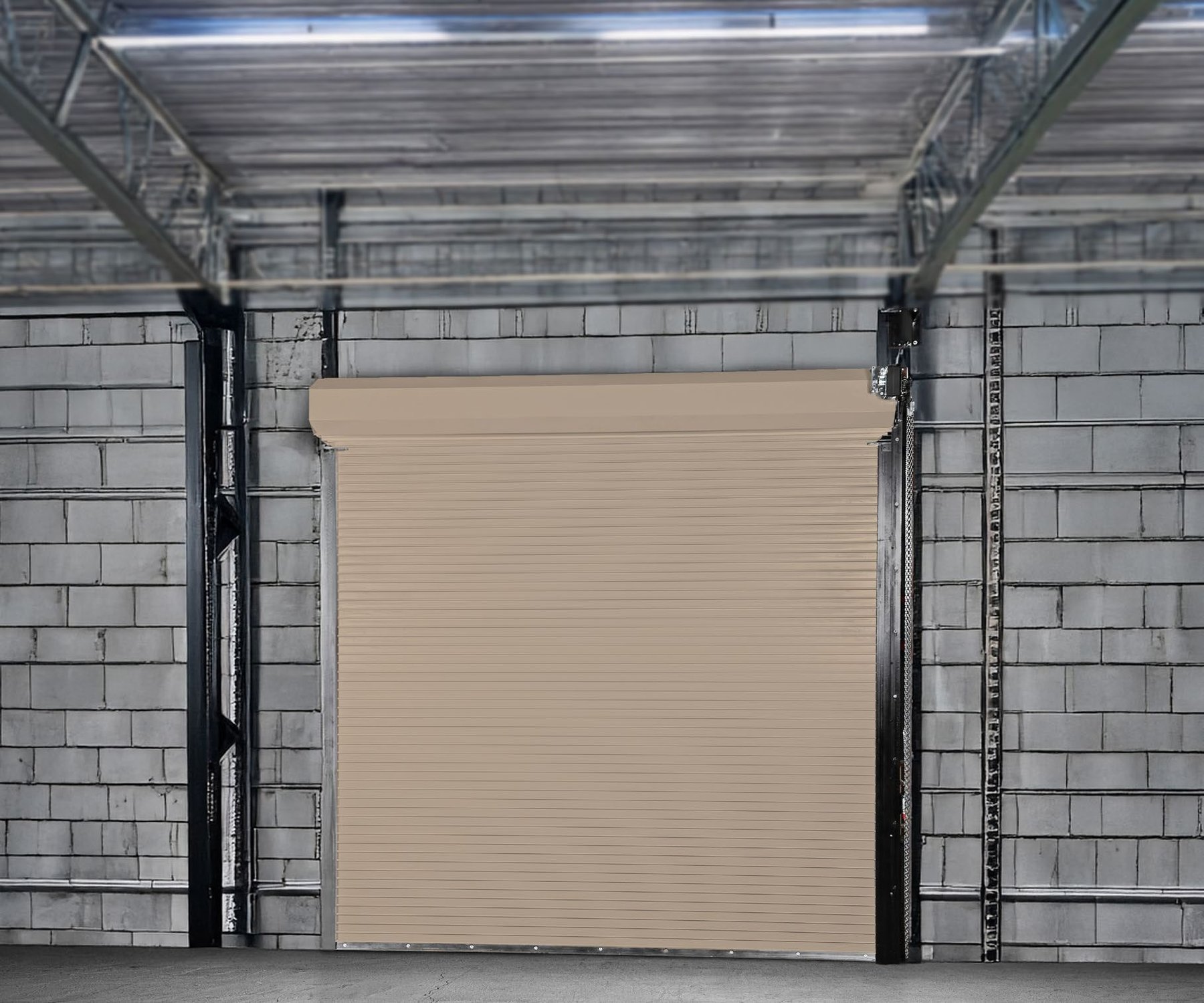

Janus 500i Series tan insulated rolling fire door in a block wall

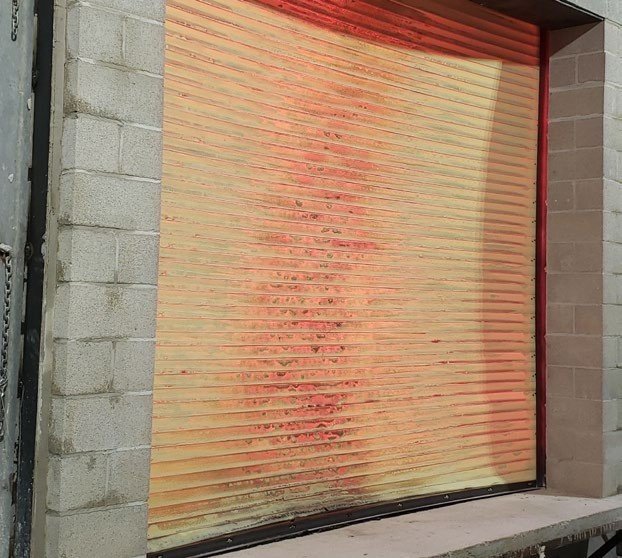

Janus 500i Series insulated rolling fire door during a UL fire test

The Janus International 500i Series Insulated Rolling Fire Door is built for openings requiring both fire protection and insulation. Featuring 3" flat slats in 22-, 20-, or 18-gauge steel with a 24-gauge backer and mineral wool insulation (R-Value 4.7), it delivers thermal performance for high-temperature applications. Available up to 30' wide by 24' high, the 500i mounts to steel, concrete, or masonry and includes a fail-safe system triggered by fusible links, smoke detectors, or alarm wiring.

STANDARD FEATURES

  • Two-piece steel bottom bar with seal
  • Chain hoist with fusible link and 30' cable
  • Torsion springs rated 25,000 cycles
  • 1/4" steel head plates
  • Auto-reset drop test
  • Envirocron black powder-coated guides, bottom bars and headplates

OPTIONS

  • Fire ratings: 45 min, 1-1/2 hr, 3 hr.
  • Auto closing devices: XP, XPBB, AFCB.
  • Detection options: Smoke or heat detector, 165° fusible links, horn/strobe; connects to alarm or standalone.
  • Mounting: Between jamb, under or above lintel.
  • Smoke seal: UL 1784 perimeter seal.
  • Weatherstrip: Flame baffle and jamb seal.
  • High-cycle springs: 50,000 or 100,000 cycles.

IDEAL APPLICATIONS

Fire protection plus thermal performance. The 500i pairs a UL fire rating of up to 3 hours with mineral wool insulation (R-4.7), for openings that need both, such as hospitals, high-rises and conditioned industrial space. Once triggered, the door deploys in a controlled descent, sealing off the opening and preserving the fire rating of the wall for a specified time period.

  • Hospitals and healthcare campuses
  • High-rise and multifamily buildings
  • Climate-controlled warehouses and manufacturing
  • Education
  • Government and stadiums
  • Heavy equipment

Download the Fire Protection Done Right eBook, or watch the rolling steel door applications video. Not sure which series fits? Try the door selector tool.

Download Door Sheet

CLEARANCE REQUIREMENTS

Headroom, sideroom and hood dimensions vary by model, operation and guide type. Download the clearance requirements or shop drawing for this series below, or ask your Janus representative for a dimensioned drawing for your opening.

DOCUMENTS

Door Sheet - Series 500i

Technical Specifications - 500i Insulated Fire Door

Installation Instructions - Series 500 Fire Door

Clearance Requirements - Series 500

Fire Door Drop Test Form

Rolling Steel Color Chart

Rolling Steel Door Warranty

PRODUCT HIGHLIGHTS

Product TypeInsulated steel
Model DescriptionInsulated UL-Rated Rolling Fire Door
Models522i (22/24-ga), 520i (20/24-ga), 518i (18/24-ga)
InsulationMineral wool, R-value 4.7, with 24-gauge backer
UL Fire Ratings45 minute, 1-1/2 hour, 3 hour
Maximum Size
Width x Height		522i: 18' x 24'
520i: 24' x 24'
518i: 30' wide or 24' high (max 600 sq. ft.)
Slat Profile3" Flat-265, 2-5/8" x 5/8"
ReleaseFail-safe: 165° fusible links, smoke or heat detector, or building fire alarm
Smoke SealUL 1784 perimeter seal optional
OperationChain hoist with fusible link standard; UL-listed fire door electric operators optional
Springs25,000 cycles standard; 50,000 or 100,000 optional
FinishesWhite, gray or tan topcoat; galvanized; powder coat
R-4.7mineral wool insulation
Up to 3 HoursUL fire rating
30' Wideor 24' high (Model 518i)
165°Ffusible link activation
Auto-Resetdrop test, standard
Firefighter in front of a Janus rolling fire door

Inspection and compliance

Fire Doors Only Work If They Work Every Time

A rolling fire door can sit open for years before it is needed. Annual inspection and drop testing are what keep it ready.

  • At minimum, annual inspection and drop testing by a trained, certified fire door assembly technician
  • Keep the opening clear: never block, prop open or store materials under a fire door
  • Repairs with manufacturer parts, and a drop test after every repair or approved modification
  • Janus offers fire door training for dealers and customers, including hands-on drop-test training

Follow NFPA 80 and your Authority Having Jurisdiction for inspection and testing requirements.
