SERIES 550

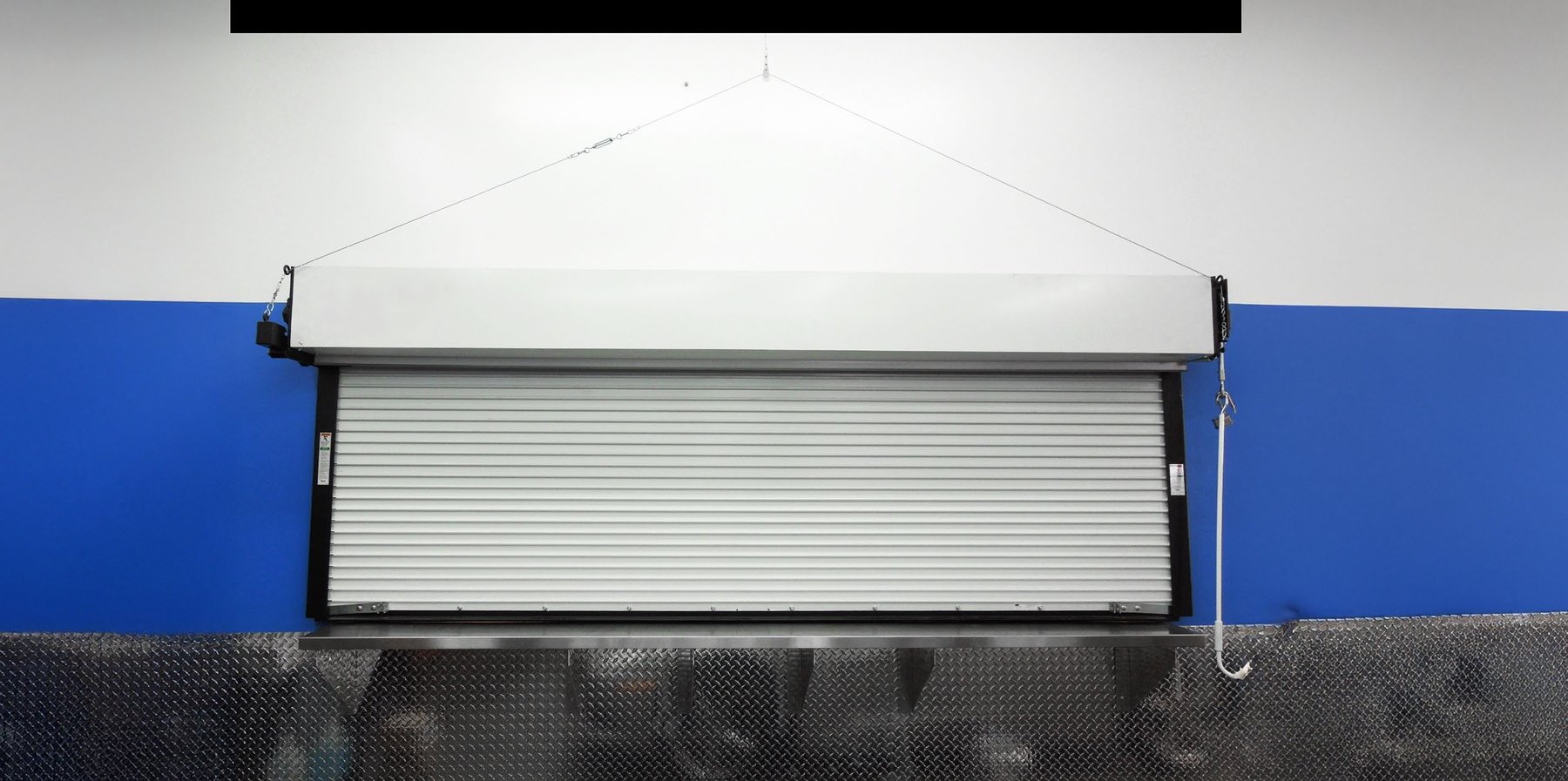

Rolling Steel Series 550 Fire Rated Counter Shutter
The Janus International 550 Series Fire Rated Counter Shutter provides U.L.-rated fire protection in a cost-effective, space-saving design. Built to the highest standards, it features user-friendly operation and a fail-safe system activated by fusible links, smoke detectors, or connection to a central alarm system. Ideal for pharmacies, cafeterias, concession areas, ticket counters, hospital desks, and other fire-rated wall applications.
STANDARD FEATURES
- 22-gauge flat slats with 1-1/2" high-profile
- Steel endlocks
- Enclosed hood
- U.L. approved
- Fusible links
- Bottom weather seal
- 2-year limited warranty
- Five finish options: white, gray, tan topcoat, galvanized, and stainless steel (22-gauge #4 finish)
OPTIONS
- Fire rating: 3/4 hour and 1-1/2 hour.
- Sizes: Up to 12'-0" wide x 8'-0" high.
- Operation: Push-up, hand crank and motor operation available on all sizes.
- Weather seal: U.L. rated jamb brush seal and flame baffle.
- Powder coating: Available on all gauges, flat or curved; consult factory for colors.
IDEAL APPLICATIONS
Your solution for compact, smaller openings. From the applications video: the 550 and 700 Series counter shutters serve service counters, pharmacies, cafeterias and concessions. The 550 adds UL fire ratings of 45 and 90 minutes for counters in fire-rated walls.
- Pharmacies and nurse stations
- Cafeterias and concessions
- Ticket counters and kiosks
- Hospital desks
- Schools and universities
- Stadiums and arenas
- Restaurants
- Government buildings
Download the Fire Protection Done Right eBook, or watch the rolling steel door applications video. Not sure which series fits? Try the door selector tool.
CLEARANCE REQUIREMENTS
Headroom, sideroom and hood dimensions vary by model, operation and guide type. Download the clearance requirements or shop drawing for this series below, or ask your Janus representative for a dimensioned drawing for your opening.
PRODUCT HIGHLIGHTS
| Product Type | Steel or stainless steel | ||
| Model Description | Fire Rated Counter Shutter | ||
| Models | 550 (22-ga galvanized), 550S (22-ga stainless #4) | ||
| UL Fire Ratings | 3/4 hour (45 minute) and 1-1/2 hour (90 minute) | ||
| Maximum Size Width x Height | 12' x 8' | ||
| Slat Profile | 1-1/2" flat, 22-gauge; baked epoxy primer and Super Durable polyester topcoat | ||
| Operation | Manual push-up standard to 10'-4" wide; crank standard on wider shutters; motor operation available on all sizes | ||
| Activation | 165° fusible links, smoke detectors, or the building fire alarm (with a Janus release device) | ||
| Locking | Slide lock standard | ||
| Guides / Bottom Bar | Box-shaped steel guides; steel angle bottom bar with weather seal (stainless on stainless shutters) | ||
| Wall Types | Approved sheetrock, steel or masonry walls | ||
| Warranty | 2-year limited | ||
Inspection and compliance
Fire Doors Only Work If They Work Every Time
A rolling fire door can sit open for years before it is needed. Annual inspection and drop testing are what keep it ready.
- At minimum, annual inspection and drop testing by a trained, certified fire door assembly technician
- Keep the opening clear: never block, prop open or store materials under a fire door
- Repairs with manufacturer parts, and a drop test after every repair or approved modification
- Janus offers fire door training for dealers and customers, including hands-on drop-test training
Follow NFPA 80 and your Authority Having Jurisdiction for inspection and testing requirements.
Applications
Where the 550 Series Works Best
From the Janus Rolling Steel Application Guide.
- Education
- Government
- Healthcare
- Heavy equipment
- Manufacturing
- Restaurant
- Stadiums
Door Selector Tool
Find the Right Rolling Steel Door in Minutes
Answer eight quick questions about the building, the opening and how the door will be used. The Door Selector shows every Janus rolling steel, commercial sheet and mini door that fits, with specifications, door sheets and a quote link on every result.
- Pick the building type and application
- Set wind load, fire rating and daily cycles
- See every matching door with specs and quote links
Videos
See Janus Rolling Steel in Action
RESOURCE
The Complete Guide to Commercial Doors.
Explore our full line of commercial sheet doors and rolling steel doors in one convenient resource. Compare products, review specifications, and discover the right solution for virtually any application.
Ready to Spec the 550 Series?
Tell us about the opening and a Janus commercial team member will help you find the right door, fast.
