Rolling counter shutters
The Janus 700 Series Counter Shutter and 550 Series Fire Rated Counter Shutter close off pharmacies, cafeterias, concessions, ticket counters and hospital desks with a compact hood that needs minimal headroom.
Talk to your Janus commercial sales rep: (866) 562-2580
Models
Use the 700 Series where the opening needs security and style, and the 550 Series where the counter sits in a fire-rated wall.
SecurityUp to 14'4" wide × 10'4" high

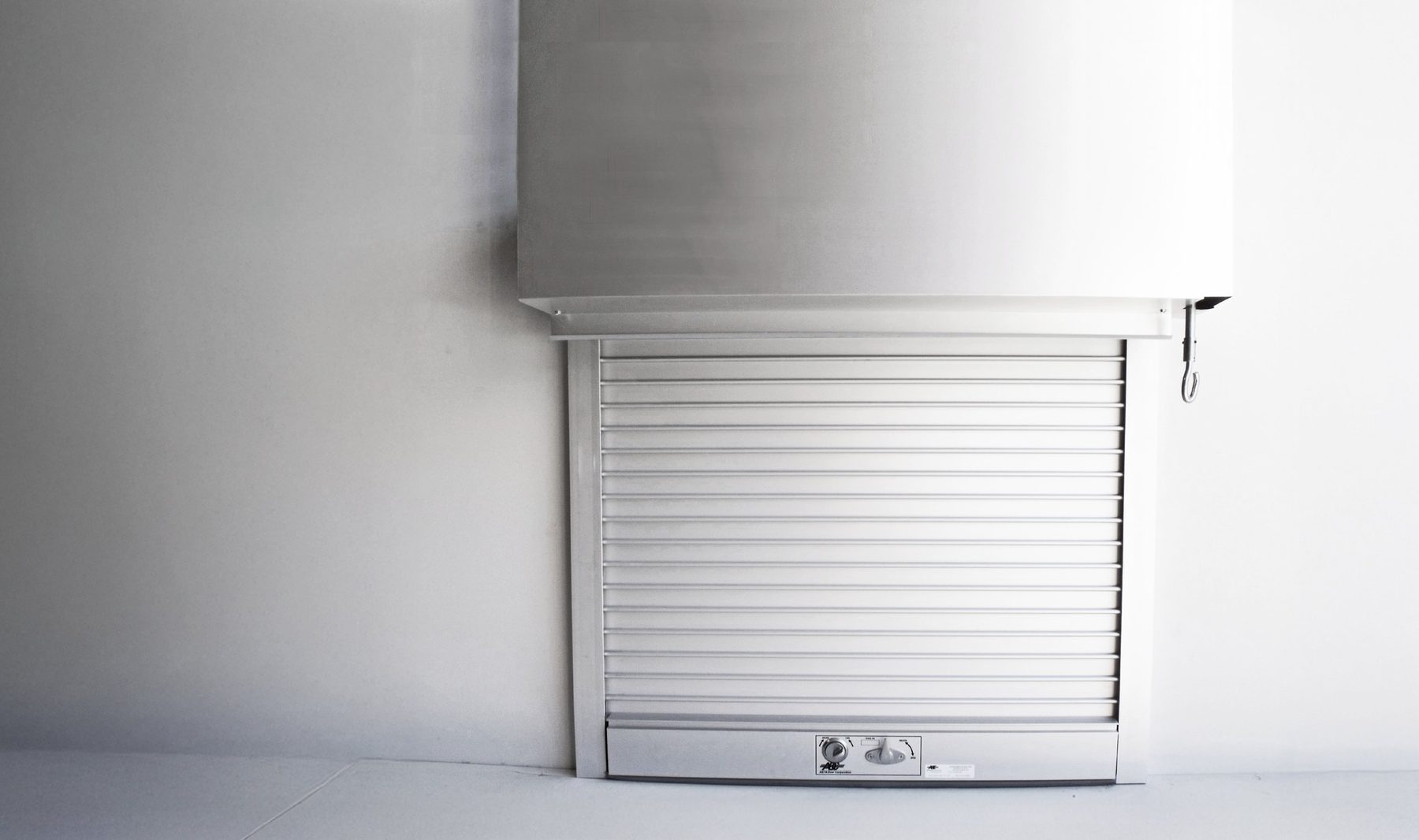

Security, style and smooth, quiet operation in clear anodized aluminum, painted steel or stainless steel.
UL ratedUp to 12' wide × 8' high
UL-rated fire protection in a compact shutter, with fail-safe activation through fusible links, smoke detectors or the building alarm.
Where counter shutters work

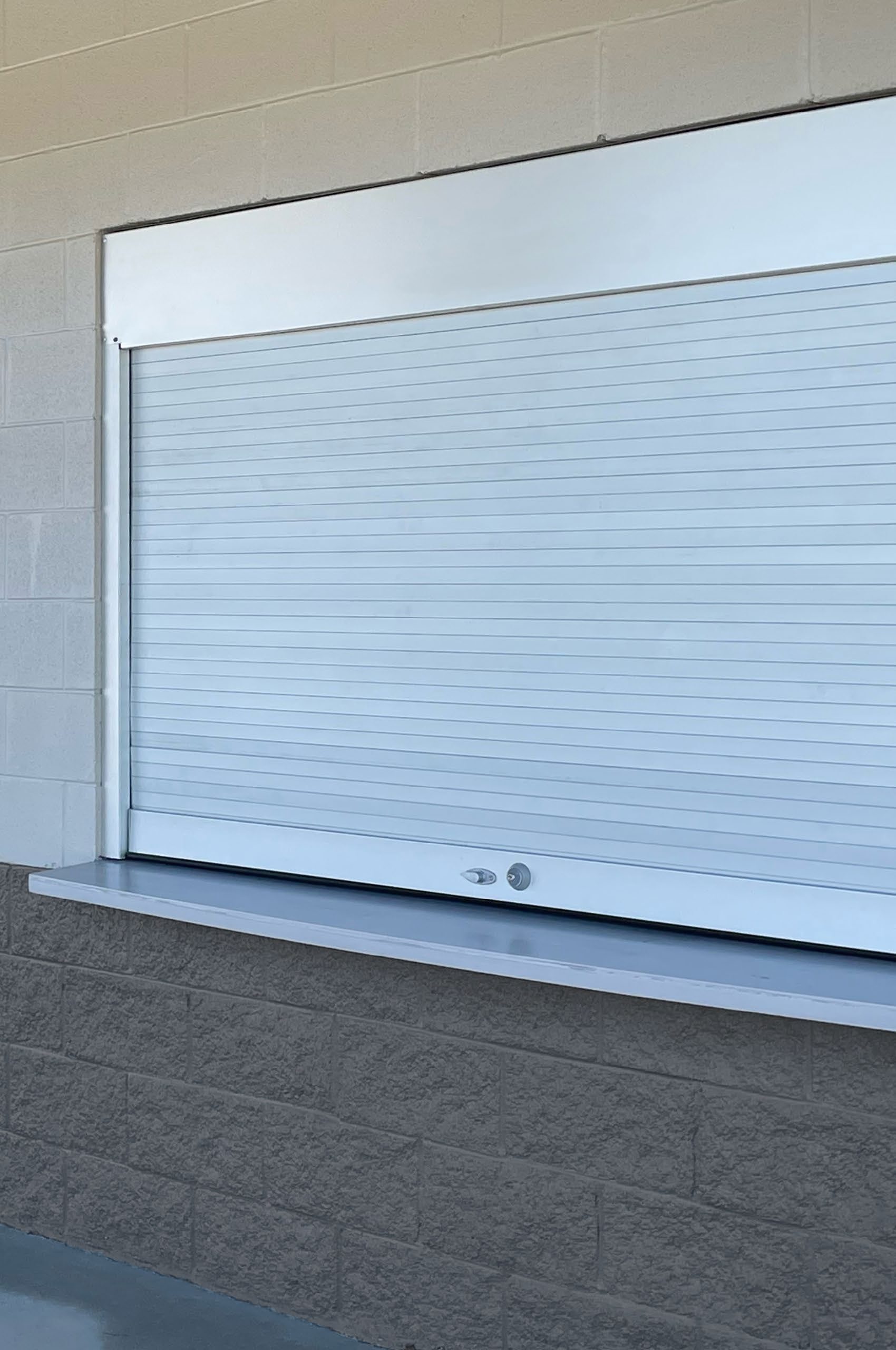

A counter shutter coils into a compact hood above the opening, so it secures the counter after hours without taking up the room around it.
Applications
From the Janus Rolling Steel Application Guide.
Door Selector Tool
Answer eight quick questions about the building, the opening and how the door will be used. The Door Selector shows every Janus rolling steel, commercial sheet and mini door that fits, with specifications, door sheets and a quote link on every result.
Key content
GuideMatch every series to 17 applications, from agriculture to stadiums.
Download
CatalogEvery series, spec table, windload rating and color option.
Download
eBookHow rolling fire doors work, and how to keep them inspected and compliant.
Download
FormThe form to record annual drop testing.
OpenCommon questions
The 550 Series Fire Rated Counter Shutter is UL rated for 45 and 90 minutes in approved sheetrock, steel or masonry walls. The 700 Series is a non-rated security counter shutter.
Pharmacies, cafeterias, concession areas, ticket counters, hospital desks and other service openings that need to be secured after hours.
Clear anodized aluminum (722A), painted 22 or 24-gauge steel in white, tan, gray or galvanized (722 and 724), and #4 finish stainless steel (722S).
The 700 Series opens by manual push-up up to 10'4" wide, or by crank, and locks with slide bolts, a thumb turn or cylinder locks. The 550 Series offers push-up, hand crank or motor operation.
Tell us about the opening and a Janus commercial team member will help you find the right door, fast.
