SERIES 500

Rolling Steel Series 500 Rolling Fire Door

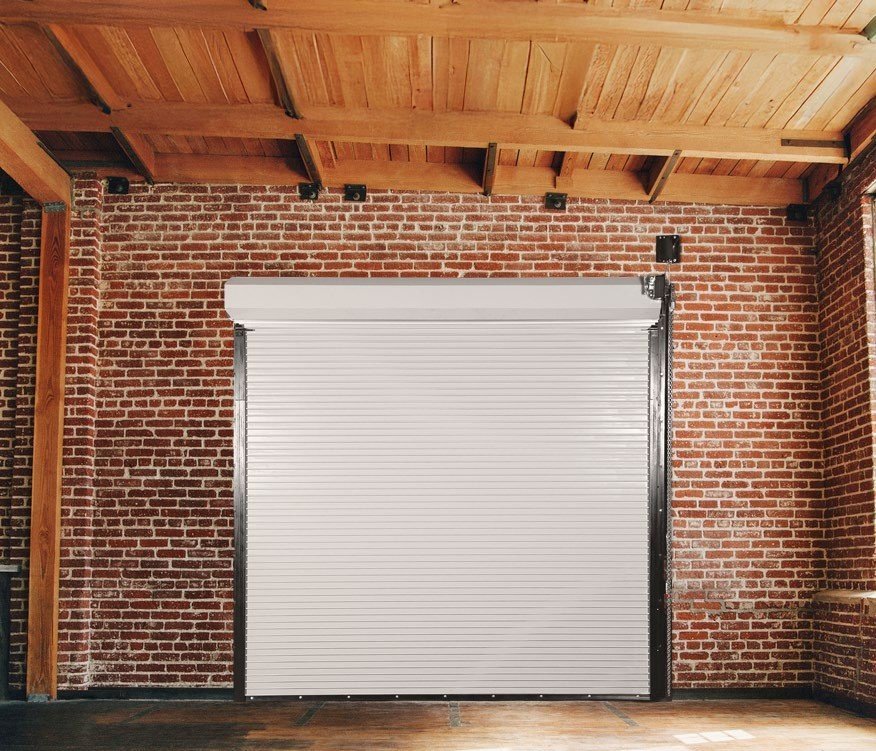

Janus 500 Series white rolling fire door in a brick warehouse wall

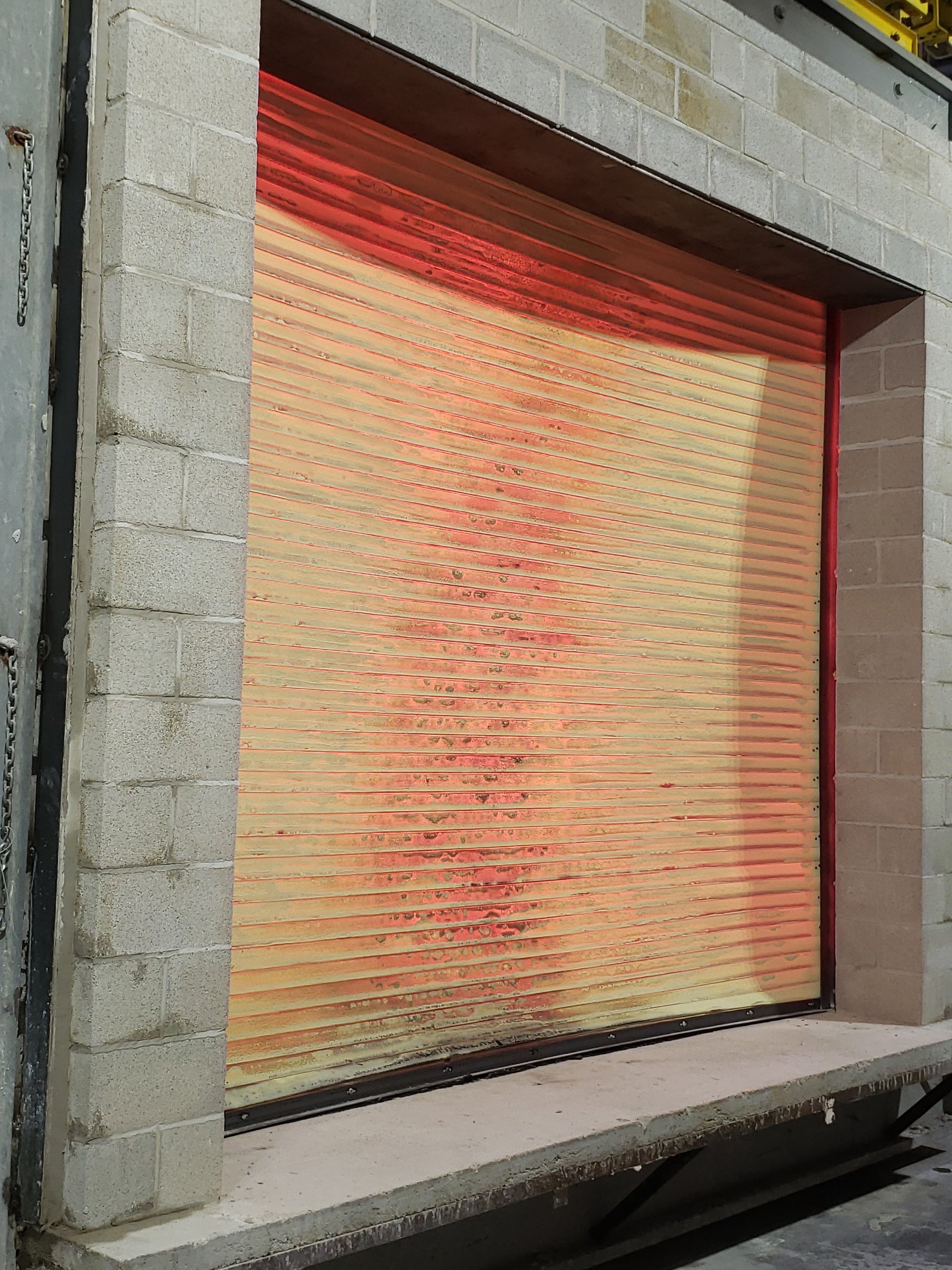

Janus 500 Series rolling fire door during a UL fire test

The Janus International 500 Series Rolling Fire Door is built for openings requiring a fire-rated solution. Available with 3" flat slats in 22-, 20-, or 18-gauge steel, it installs to steel, concrete, or masonry and sizes up to 30' wide x 24' high (max 600 sq. ft.). Featuring a space-saving design and smooth operation, its fail-safe system activates via fusible links, smoke detectors, or connection to a central alarm.

STANDARD FEATURES

  • Malleable cast iron endlocks on alternating slats
  • Two-piece steel bottom bar with seal
  • Chain hoist with fusible link and 30' cable
  • 1/4" steel head plates
  • Torsion springs rated 25,000 cycles
  • Auto-reset drop test
  • Guides, bottom bars and headplates Envirocron powder coated black at the factory

OPTIONS

  • Fire ratings: 45 min, 1-1/2 hr, 3 hr, 4 hr (18-ga only).
  • Detection options: Smoke or heat detector, 165° fusible links, horn/strobe; connects to alarm or standalone.
  • Vision panels: 5" x 3/4", available for 45-min, 1-1/2-hr and 3-hr UL ratings.
  • Weatherstrip: Flame baffle and jamb seal.
  • High-cycle springs: 50,000 or 100,000 cycles.

IDEAL APPLICATIONS

Your solution for large-scale openings. The 500 and 500i Fire Door Series provide fire-rated protection, with insulated options, wherever a wall opening must hold its fire rating: commercial buildings, industrial facilities, healthcare campuses, educational institutions and multifamily developments.

  • Warehouses and factories
  • Manufacturing
  • Education
  • Government and stadiums
  • Healthcare
  • Heavy equipment
  • Multifamily and high-rise buildings

Fire doors only work if they work every time. Annual inspection and drop testing by a trained technician keep the door ready.

Download the Fire Protection Done Right eBook, or watch the rolling steel door applications video. Not sure which series fits? Try the door selector tool.

Download Door Sheet

CLEARANCE REQUIREMENTS

Headroom, sideroom and hood dimensions vary by model, operation and guide type. Download the clearance requirements or shop drawing for this series below, or ask your Janus representative for a dimensioned drawing for your opening.

DOCUMENTS

Door Sheet - Series 500

Technical Specifications - 500 Series Fire Door

Installation Instructions - Series 500

Clearance Requirements - Series 500

Fire Door Drop Test Form

Rolling Steel Color Chart

Rolling Steel Door Warranty

PRODUCT HIGHLIGHTS

Product TypeSteel or stainless steel
Model DescriptionUL-Rated Rolling Fire Door
Models522 (22-ga), 520 (20-ga), 518 (18-ga), 522S/520S (stainless)
UL Fire Ratings45 minute, 1-1/2 hour, 3 hour; 4 hour (18-gauge only)
Maximum Size
Width x Height		522: 18' x 24'
520: 24' x 24'
518: 30' wide or 24' high (max 600 sq. ft.)
Slat Profile3" Flat-265 or Curved-288; galvanized steel with Super Durable polyester topcoat
ReleaseFail-safe: 165° fusible links, smoke or heat detector, or building fire alarm
Auto Closing DevicesXP, XPBB, AFCB
OperationChain hoist with fusible link standard; UL-listed fire door electric operators optional
MountingBetween jamb, under or above lintel; steel, concrete or masonry
Springs25,000 cycles standard; 50,000 or 100,000 optional
FinishesWhite, gray or tan topcoat; galvanized; stainless; aluminum; custom powder coat
Up to 4 HoursUL fire rating (18-gauge)
600 sq ftmaximum opening
165°Ffusible link activation
Auto-Resetdrop test, standard
25,000cycle torsion springs
Hand holding a lit match in front of a red rolling fire door

Inspection and compliance

Fire Doors Only Work If They Work Every Time

A rolling fire door can sit open for years before it is needed. Annual inspection and drop testing are what keep it ready.

  • At minimum, annual inspection and drop testing by a trained, certified fire door assembly technician
  • Keep the opening clear: never block, prop open or store materials under a fire door
  • Repairs with manufacturer parts, and a drop test after every repair or approved modification
  • Janus offers fire door training for dealers and customers, including hands-on drop-test training

Follow NFPA 80 and your Authority Having Jurisdiction for inspection and testing requirements.
