SERIES 400HP
Rolling Steel Series 400HP High Performance Rolling Service Door
The Janus International 400HP Series High Performance Door sets the standard for rolling steel systems—built for durability, security, and smooth operation up to 24" per second. A fraction of the cost of high-speed doors, it delivers up to 3x faster performance, 16x the cycle life, and unmatched reliability for maximum protection and efficiency in any industrial or commercial application.
STANDARD FEATURES
- 3-piece steel guides with UHMW strip
- UL325 NEMA photo eye sensors
- UL325 3'/6' NEMA light curtain
- Springless barrel, universal left/right handing
- Soft-start/stop DC motor
- Guides, bottom bars, and headplates are Envirocron powder coated black at the factory
- Speed up to 24" open / 12" close
- 400k cycles, 2-year warranty
OPTIONS
- Vision panels: 5" x 3/4" cutouts with clear Lexan (flat slat only).
- High-cycle option: Up to 600,000 cycles or 3 years.
- Traffic light kit: 3' IP68 LED.
- QuickPak crating: Reduces install time, cost and damage.
- Brush seal: Header and jamb seal with aluminum retainer.
IDEAL APPLICATIONS
Extra speed. Built for speed and at a fraction of the cost of other high-speed doors. Operating at 24" per second, up to 3x faster than standard rolling steel doors, with 400,000 standard cycles that are 16x the typical cycle life. Choose the 400HP wherever a service door opens many times a day.
- Parking garages
- Manufacturing and distribution
- Auto dealerships and service bays
- Fire and EMS stations
- Agriculture
- Commercial and multi-tenant buildings
- Education
- Government and stadiums
- Heavy equipment
- High-security openings
Compare it with the 400 and 600 in the 400 vs 400HP vs 600 service door comparison sheet, or watch the rolling steel door applications video. Not sure which series fits? Try the door selector tool.
CLEARANCE REQUIREMENTS
Headroom, sideroom and hood dimensions vary by model, operation and guide type. Download the clearance requirements or shop drawing for this series below, or ask your Janus representative for a dimensioned drawing for your opening.
PRODUCT HIGHLIGHTS
| Product Type | Steel or stainless steel | ||
| Model Description | High Performance Rolling Service Door | ||
| Models | 422HP (22-ga galvanized), 422SHP (22-ga stainless #4) | ||
| Slat Profile | 3" Flat-265, 2-5/8" x 5/8"; galvanized grade 50 steel with nylon endlocks | ||
| Maximum Size Width x Height | 14' x 20' | ||
| Speed | Up to 24" per second open / 12" per second close | ||
| Cycle Life | 400,000 cycles standard; 600,000-cycle option | ||

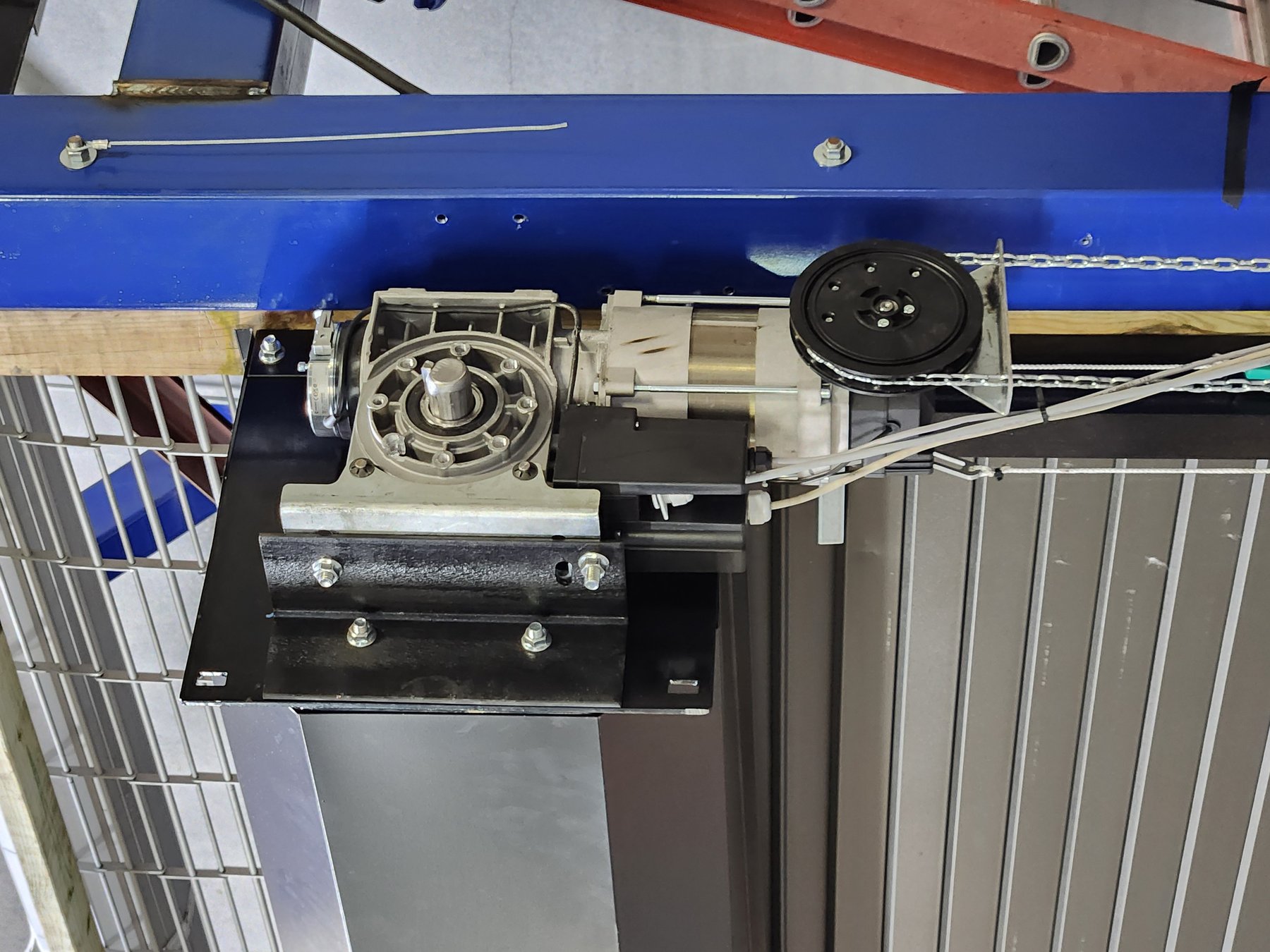

| Operator | SecureDrive+ direct-drive operator with plug-and-play NEMA 4X control box and variable frequency drive | ||
| Standard Guides | 3-piece structural steel, 3/16" minimum, with self-lubricating UHMW strip | ||
| Safety | UL325 photo eyes and 3' or 6' light curtain | ||
| Finishes | White, gray, tan, galvanized, powder coat; stainless #4 | ||
| Warranty | 2-year, 400,000 cycles (3-year / 600,000 cycles optional) | ||
Speed without the high-speed price
High Performance That Keeps Traffic Moving
Every second a dock or garage door spends opening and closing adds up across hundreds of daily cycles. The 400HP and 800HP are built to move faster and last longer than standard rolling steel.
- Up to 24" per second open and 12" per second close, up to 3x faster than standard rolling steel doors
- 400,000 cycles standard, 16x the typical cycle life, with a 600,000-cycle upgrade
- Plug-and-play NEMA 4X wall-mounted control panel with variable frequency drive
Compare
400, 400HP or 600: Which Service Door Fits?
The three Janus rolling service doors side by side, from the Service Door Comparison Sheet.
| 400 SeriesHeavy Duty Service Door | 400HP SeriesHigh Performance Door | 600 SeriesInsulated Service Door | |
|---|---|---|---|
| Built for | Extra protection | Extra speed | Extra savings |
| Max size | 40' wide or 30' high | 14' wide × 20' high | 40' × 16' to 28' × 26', by model |
| Opening speed | Standard | Up to 24" per second | Standard |
| Standard cycles | 25,000 (50,000 or 100,000 optional) | 400,000 (600,000 optional) | 25,000 (50,000 or 100,000 optional) |
| Insulation | No | No | R-7.2 |
| Windload / Miami-Dade | Optional | No | Optional |
| DC motor | No | Yes | Optional |
| Counterbalance | Springs | Springless barrel | Springs |
Applications
Where the 400HP Series Works Best
From the Janus Rolling Steel Application Guide.
- Agriculture
- Auto dealership
- Commercial/multi-tenant
- Education
- Fire station
- Government
- Heavy equipment
- High security
- Manufacturing
- Parking
- Stadiums

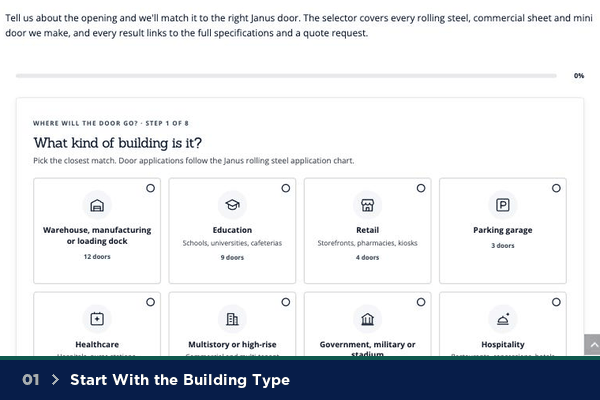

Door Selector Tool
Find the Right Rolling Steel Door in Minutes
Answer eight quick questions about the building, the opening and how the door will be used. The Door Selector shows every Janus rolling steel, commercial sheet and mini door that fits, with specifications, door sheets and a quote link on every result.
- Pick the building type and application
- Set wind load, fire rating and daily cycles
- See every matching door with specs and quote links
Videos
See Janus Rolling Steel in Action
RESOURCE
The Complete Guide to Commercial Doors.
Explore our full line of commercial sheet doors and rolling steel doors in one convenient resource. Compare products, review specifications, and discover the right solution for virtually any application.
Ready to Spec the 400HP Series?
Tell us about the opening and a Janus commercial team member will help you find the right door, fast.
