SERIES 700

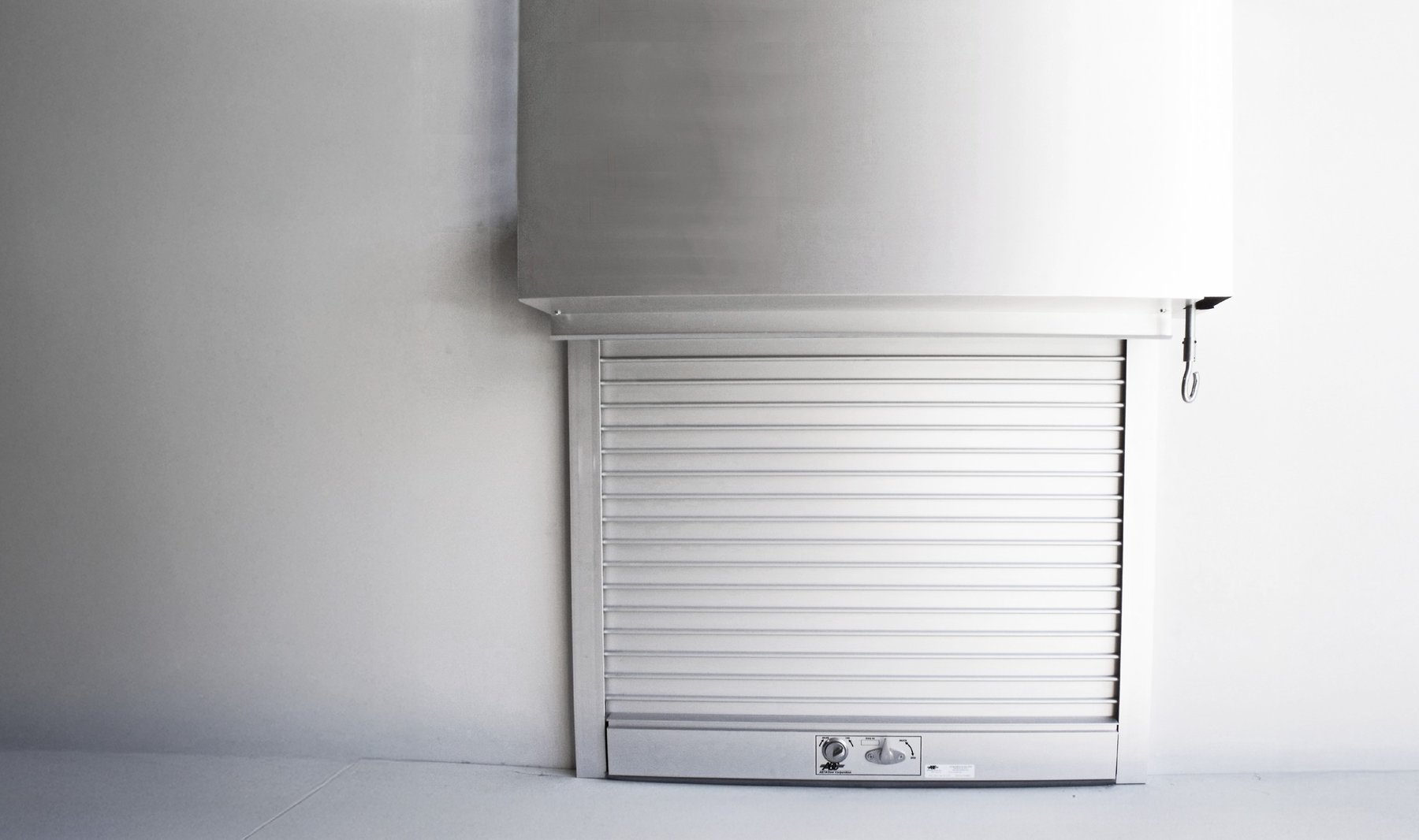

Rolling Steel Series 700 Counter Shutter
The Janus International 700 Series Counter Shutter combines security, style, and smooth, quiet operation. Available in clear anodized aluminum, painted steel (22- or 24-gauge), or stainless steel, its compact design requires minimal headroom—ideal for pharmacies, cafeterias, concessions, ticket counters, and hospital desks.
STANDARD FEATURES
- Enclosed hood
- Flat slats with 1-1/2" high profile
- Steel end-locks
- Slide bolt locks
- Aluminum angle bottom bar with weather seal
- Manual push up to 10'-4" wide
- 2-year limited warranty
- Envirocron black powder-coated guides, bottom bars and headplates
OPTIONS
- Mounting: Face of wall, or between jamb above or below lintel.
- Sizes: Up to 14'4" wide x 10'4" high.
- Operation: Manual push-up or crank with handle.
- Locking: Slide bolt locks, thumb turn lock or cylinder locks.
IDEAL APPLICATIONS
From the applications video: the 550 and 700 Series counter shutters serve service counters, pharmacies, cafeterias and concessions. The 700's compact design needs minimal headroom, in painted steel, clear anodized aluminum or stainless steel to match the counter.
- Pharmacies
- Cafeterias and concessions
- Ticket counters
- Hospital desks and nurse stations
- Schools and universities
- Restaurants and hospitality
- Government buildings
- Stadiums
Watch the rolling steel door applications video to see each series in use, or the rolling steel explainer video for the full line. Not sure which series fits? Try the door selector tool.
CLEARANCE REQUIREMENTS
Headroom, sideroom and hood dimensions vary by model, operation and guide type. Download the clearance requirements or shop drawing for this series below, or ask your Janus representative for a dimensioned drawing for your opening.
PRODUCT HIGHLIGHTS
| Product Type | Steel, aluminum or stainless steel | ||
| Model Description | Counter Shutter | ||
| Models | 724 (24-ga steel), 722 (22-ga steel), 722A (clear anodized aluminum), 722S (22-ga stainless #4) | ||
| Slat Profile | 1-1/2" flat, high profile | ||
| Maximum Size Width x Height | 14'-4" x 10'-4" | ||
| Operation | Manual push-up to 10'-4" wide; crank with handle above 10'-4" | ||
| Mounting | Face of wall, or between jamb above or below lintel | ||
| Guides / Bottom Bar | Extruded two-piece aluminum guides and aluminum angle bottom bar (stainless on stainless shutters) | ||
| Locking | Dual slide bolt locks standard; thumb turn or cylinder locks optional | ||
| Finishes | Painted white, gray or tan; galvanized; clear anodized aluminum; stainless #4; powder coat optional | ||
| Warranty | 2-year limited | ||
Where counter shutters work
Secure Service Counters Without Losing Floor Space
A counter shutter coils into a compact hood above the opening, so it secures the counter after hours without taking up the room around it.
- Pharmacies, cafeterias, concession stands, ticket counters and hospital desks
- Minimal headroom, with face-of-wall or between-jamb mounting
- Fire-rated walls get the UL-rated 550 Series, with 45 and 90-minute ratings
Applications
Where the 700 Series Works Best
From the Janus Rolling Steel Application Guide.
- Education
- Government
- Healthcare
- Heavy equipment
- Manufacturing
- Pharmacy
- Restaurant
- Stadiums
Door Selector Tool
Find the Right Rolling Steel Door in Minutes
Answer eight quick questions about the building, the opening and how the door will be used. The Door Selector shows every Janus rolling steel, commercial sheet and mini door that fits, with specifications, door sheets and a quote link on every result.
- Pick the building type and application
- Set wind load, fire rating and daily cycles
- See every matching door with specs and quote links
Videos
See Janus Rolling Steel in Action
RESOURCE
The Complete Guide to Commercial Doors.
Explore our full line of commercial sheet doors and rolling steel doors in one convenient resource. Compare products, review specifications, and discover the right solution for virtually any application.
Ready to Spec the 700 Series?
Tell us about the opening and a Janus commercial team member will help you find the right door, fast.
