SERIES 800HP

Rolling Steel Series 800HP High Performance Rolling Grille

Janus 800HP Series high performance rolling grille in a parking structure opening

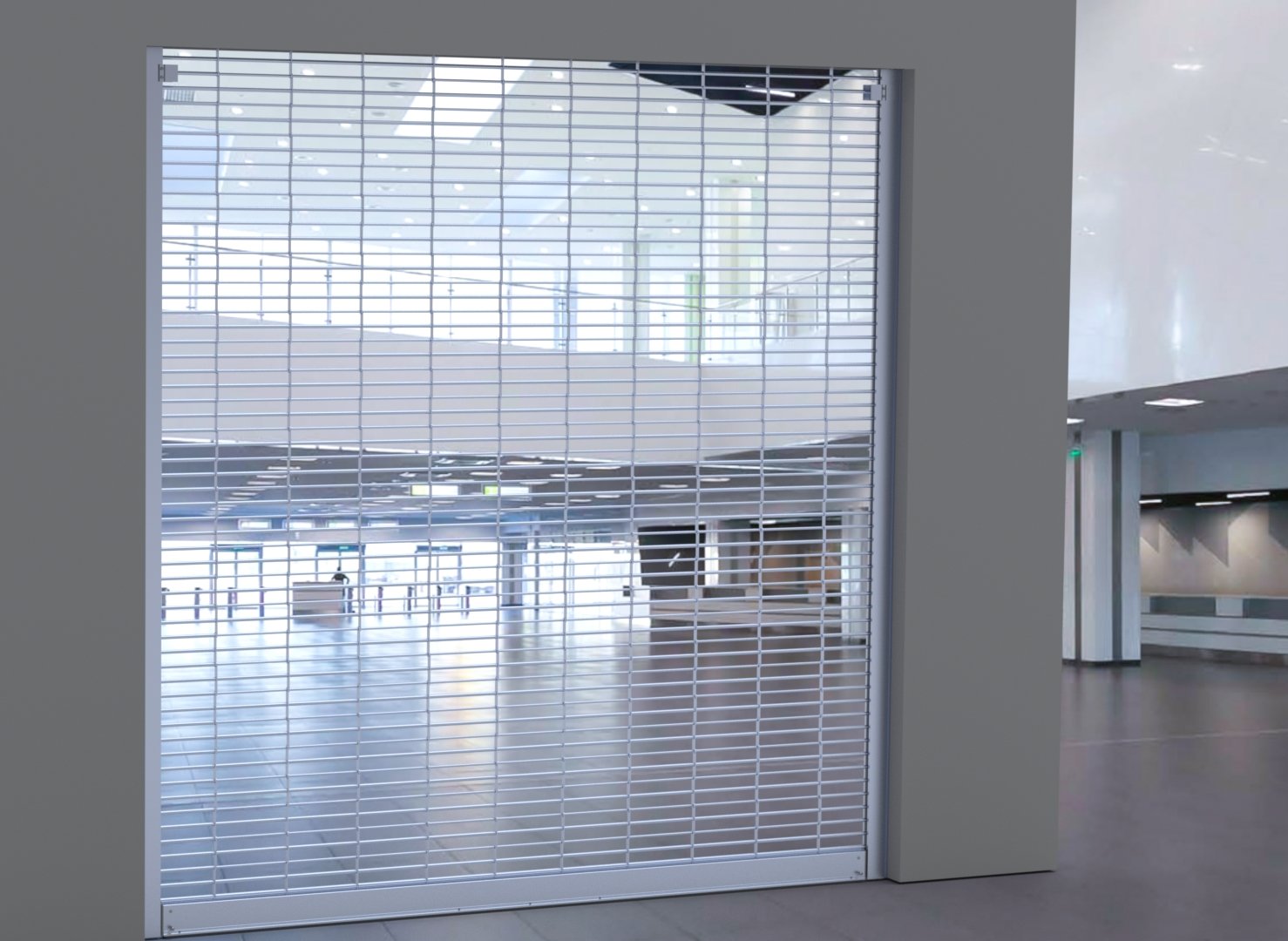

Janus 800HP Series rolling grille curtain close-up

The Janus International 800HP Series High Performance Grille delivers superior speed, durability, and security. Operating up to 24" per second open and 12" per second close, it outperforms traditional grilles with unmatched strength and reliability—ideal for parking garages, hospitals, schools, retail, and other high-cycle applications.

STANDARD FEATURES

  • Steel wall angles with black powder coat and aluminum guides
  • Headplates 1/4" steel, black powder coated
  • Photo eyes UL325 R5 compliant, NEMA rated
  • Springless barrel for high-cycle use, left/right handing
  • DC motor soft-start/stop for longer life
  • Light curtain UL325 compliant, 3' or 6' lengths
  • QuickPak crating reduces install time, cost and damage
  • Speed up to 24" open / 12" close
  • Cycle life 400k cycles, 2-year warranty

OPTIONS

  • High cycle: Upgradeable to 600,000 cycles or three years.
  • Traffic light kit: 3' IP68 LED.

IDEAL APPLICATIONS

From the applications video: the 800 Rolling Grille and 800HP serve retail, parking, schools, hospitals and high-traffic areas, combining visibility, security, ventilation, and speed. Choose the 800HP for openings that cycle all day: 24" per second open with a 400,000-cycle springless barrel.

  • Parking garages
  • Retail and malls
  • Schools and universities
  • Hospitals
  • Commercial and multi-tenant buildings
  • Restaurants
  • Government buildings
  • Stadiums and arenas

Watch the rolling steel door applications video to see each series in use, or the rolling steel explainer video for the full line. Not sure which series fits? Try the door selector tool.

Download Door Sheet

CLEARANCE REQUIREMENTS

Headroom, sideroom and hood dimensions vary by model, operation and guide type. Download the clearance requirements or shop drawing for this series below, or ask your Janus representative for a dimensioned drawing for your opening.

DOCUMENTS

Door Sheet - Series 800HP

Technical Specifications - 800HP Series

Installation Instructions - Series 800HP

Rolling Steel Door Warranty

PRODUCT HIGHLIGHTS

Product TypeAluminum
Model DescriptionHigh Performance Rolling Grille
Models800HP Straight, 800HP Brick
Curtain5/16" extruded aluminum rods spaced 1-3/4" on center with interlocking 1" x 5/8" x 4-1/4" aluminum links
Maximum Size
Width x Height		24' x 12'
SpeedUp to 24" per second open / 12" per second close
Cycle Life400,000 cycles standard; 600,000-cycle option
OperatorSecureDrive+ direct-drive operator with plug-and-play NEMA 4X control box and variable frequency drive
Guide Assembly3/16" minimum structural steel wall angles; 3" x 1-1/2" extruded aluminum guides with vinyl stripping and removable headstops
Bottom BarTubular aluminum extrusion with PVC bulb astragal
SafetyUL325 photo eyes, 3' or 6' light curtain, anti-drop protection
FinishClear anodized
Warranty2-year, 400,000 cycles (3-year / 600,000 cycles optional)
24"/secopening speed (12"/sec closing)
400,000cycles standard, 600,000 optional
5/16" Rodsextruded aluminum curtain
24' x 12'maximum opening
2-Yearwarranty, 3-year upgrade available

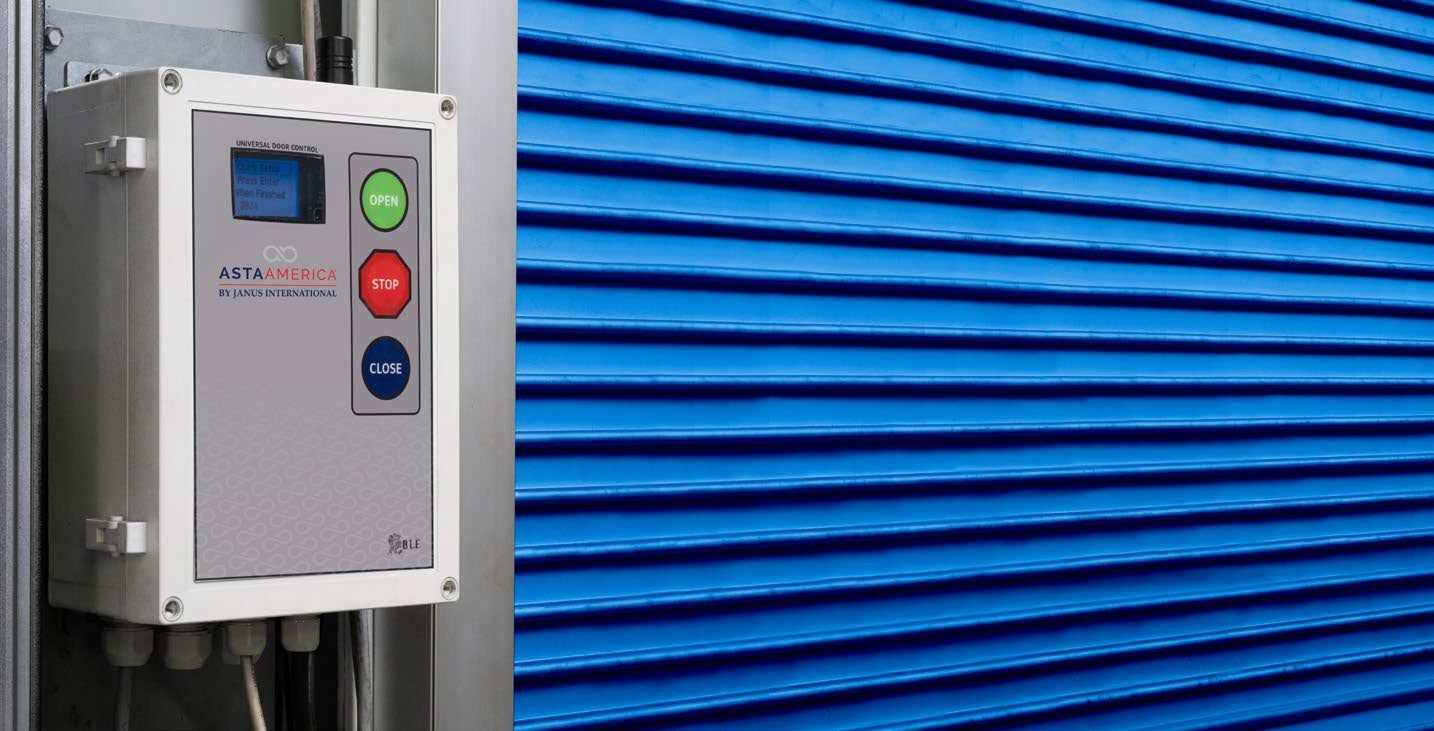

Janus high performance control box beside a rolling steel curtain

Speed without the high-speed price

High Performance That Keeps Traffic Moving

Every second a dock or garage door spends opening and closing adds up across hundreds of daily cycles. The 400HP and 800HP are built to move faster and last longer than standard rolling steel.

  • Up to 24" per second open and 12" per second close, up to 3x faster than standard rolling steel doors
  • 400,000 cycles standard, 16x the typical cycle life, with a 600,000-cycle upgrade
  • Plug-and-play NEMA 4X wall-mounted control panel with variable frequency drive
Compare the Service DoorsRequest a Quote

Applications

Where the 800HP Series Works Best

From the Janus Rolling Steel Application Guide.

  • Commercial/multi-tenant
  • Education
  • Government
  • Heavy equipment
  • Manufacturing
  • Parking
  • Restaurant
  • Retail
  • Stadiums
Janus Door Selector Tool: pick the building type, answer spec questions and see every Janus door that fits

Door Selector Tool

Find the Right Rolling Steel Door in Minutes

Answer eight quick questions about the building, the opening and how the door will be used. The Door Selector shows every Janus rolling steel, commercial sheet and mini door that fits, with specifications, door sheets and a quote link on every result.

  1. Pick the building type and application
  2. Set wind load, fire rating and daily cycles
  3. See every matching door with specs and quote links
Open the Door Selector

Videos

See Janus Rolling Steel in Action

Janus Rolling Steel Application Video
Janus Rolling Steel Door Explainer Video
Janus commercial doors booklet

RESOURCE

The Complete Guide to Commercial Doors.
Explore our full line of commercial sheet doors and rolling steel doors in one convenient resource. Compare products, review specifications, and discover the right solution for virtually any application.

Download Your Free Copy

Ready to Spec the 800HP Series?

Tell us about the opening and a Janus commercial team member will help you find the right door, fast.

Request a QuoteCall (866) 562-2580
